Blackzero BZD-01T-PH-A1 Explained: Exact Specifications, Five Modes and Model Differences
The Blackzero BZD-01T-PH-A1 is a 16V cordless brushless drill/driver sold in a 2-in-1 portable tool case. Its former Amazon listing (ASIN B0DBQMQMMW) is no longer available; the same kit is currently sold as BZD-01T-PH (ASIN B0D5CLZ1ZT). Below are its exact listed specifications, what's in the case, what each of the 5 modes does, and how this model number differs from the other Blackzero BZD-01 listings it's easy to confuse it with.

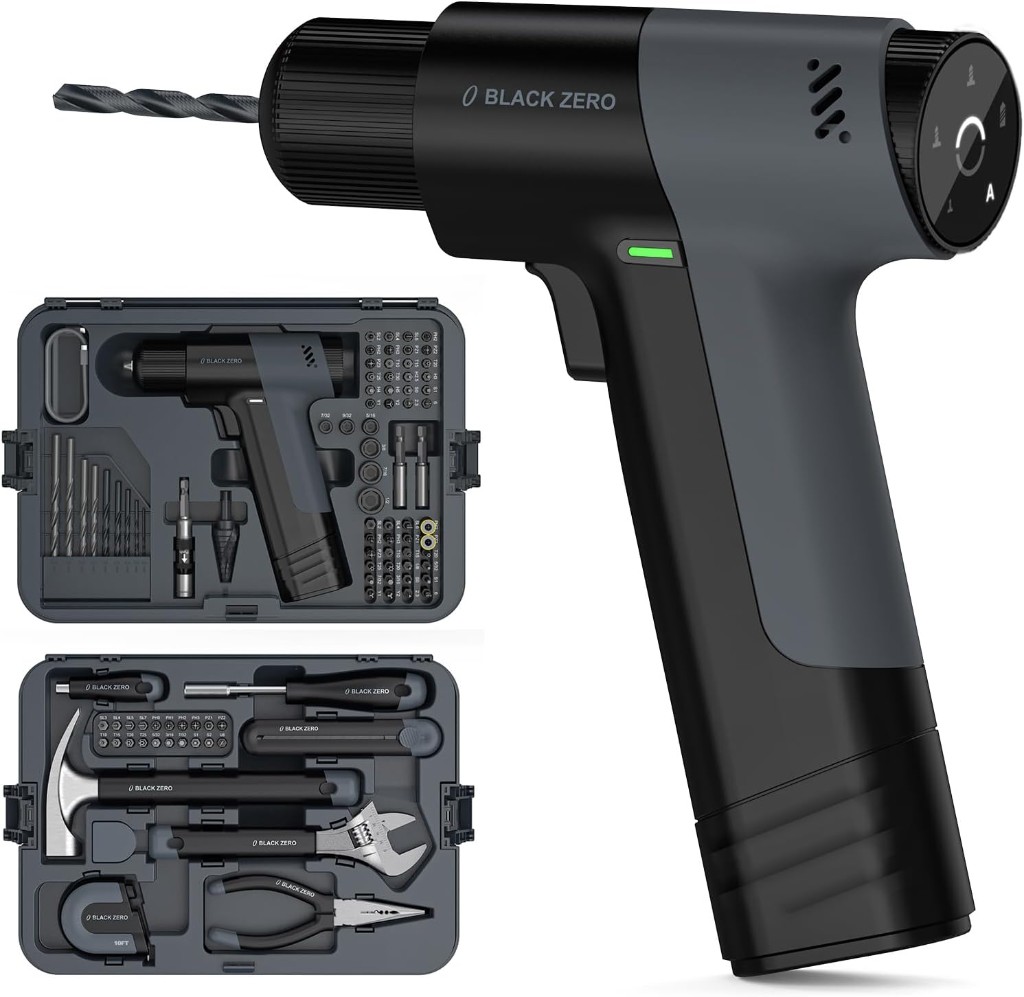

Product images from Blackzero's kit listing for the same 2-tier drill + hand-tool platform (live ASIN B0D5CLZ1ZT; former A1 ASIN B0DBQMQMMW).
Quick answer
Blackzero BZD-01T-PH-A1 (former ASIN B0DBQMQMMW) is a 16V, brushless, USB-C rechargeable cordless drill/driver with up to 60 N·m of torque and 5 working modes selected from an intelligent touchscreen display. It ships in a 2-tier portable case: one tier holds the drill and bits, the other holds a hand-tool set including a sheepshead hammer — the same kit design now sold live as BZD-01T-PH (ASIN B0D5CLZ1ZT). Last recorded price for this kit was $259.00; check the live listing for today's price.
Exact BZD-01T-PH-A1 specifications
These are the specifications published for the BZD-01T-PH-A1 kit (former ASIN B0DBQMQMMW), cross-checked against Blackzero's live BZD-01T-PH listing (ASIN B0D5CLZ1ZT), the BZD-01T-PS listing, and independent reviews of the same BZD-01T drill platform.
| Brand | Blackzero |
|---|---|
| Model | BZD-01T-PH-A1 |
| Former ASIN (BZD-01T-PH-A1) | B0DBQMQMMW — no longer available on Amazon |
| Live buy ASIN (BZD-01T-PH) | B0D5CLZ1ZT — same 2-tier drill + hand-tool kit; this is the listing we link |
| Last recorded price | $259.00 (check live listing; Amazon prices change) |
| Category | Drills > Drill Drivers |
| Drill type | Combination drill/driver |
| Color | Black |
| Power source | Battery powered |
| Voltage | 16V nominal (16.8V max, per the BZD-01T platform) |
| Motor | Brushless (no carbon brushes to replace) |
| Max torque | 60 N·m |
| Working modes | 5, selected via an intelligent touchscreen display |
| Battery | 1600mAh Li-ion, removable, USB-C rechargeable |
| Screws per charge | Up to 850, per Blackzero's listing copy |
| Power-bank function | Yes — the detached battery can charge a phone or other USB device |
| Case | 2-tier, blow-molded, tough ABS, wear-resistant, stackable or split apart |

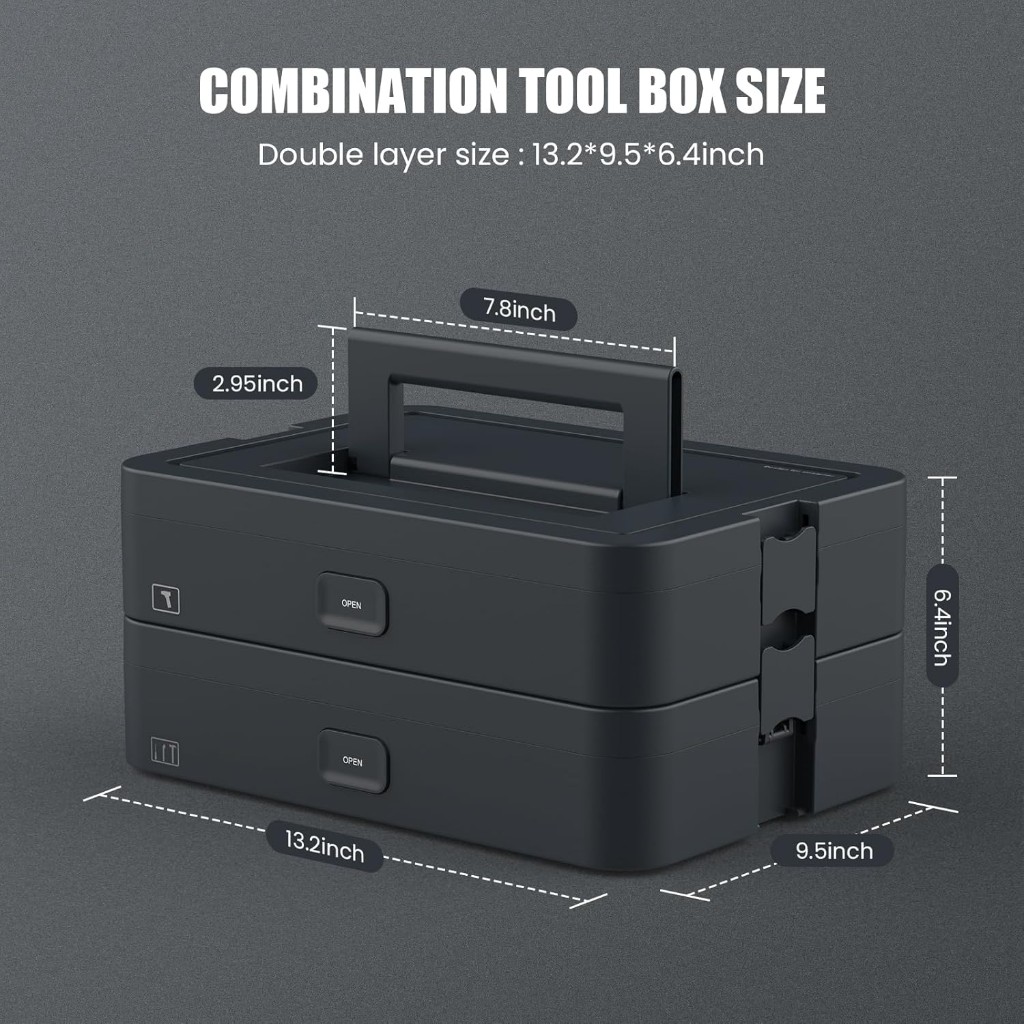

| Case dimensions (double-layer) | 13.2 × 9.5 × 6.4 in (handle: 7.8 in wide × 2.95 in tall), per Blackzero's listing diagram |
| Is electric | Yes |
| Amazon rating | 4.8 out of 5 (6 ratings on the former listing, before delisting) |
Chuck capacity, no-load current, exact charge time and the drill's weight are not listed on Blackzero's former B0DBQMQMMWcopy or images; the chuck and current figures commonly cited for the shared BZD-01T platform (2–10mm chuck, ≤4A no-load current) come from the BZD-01T-PH/PS listings and independent reviews in the sources section below, not from Blackzero's A1-specific copy. We do not have a confirmed weight for this SKU.
What's in the BZD-01T-PH-A1 case

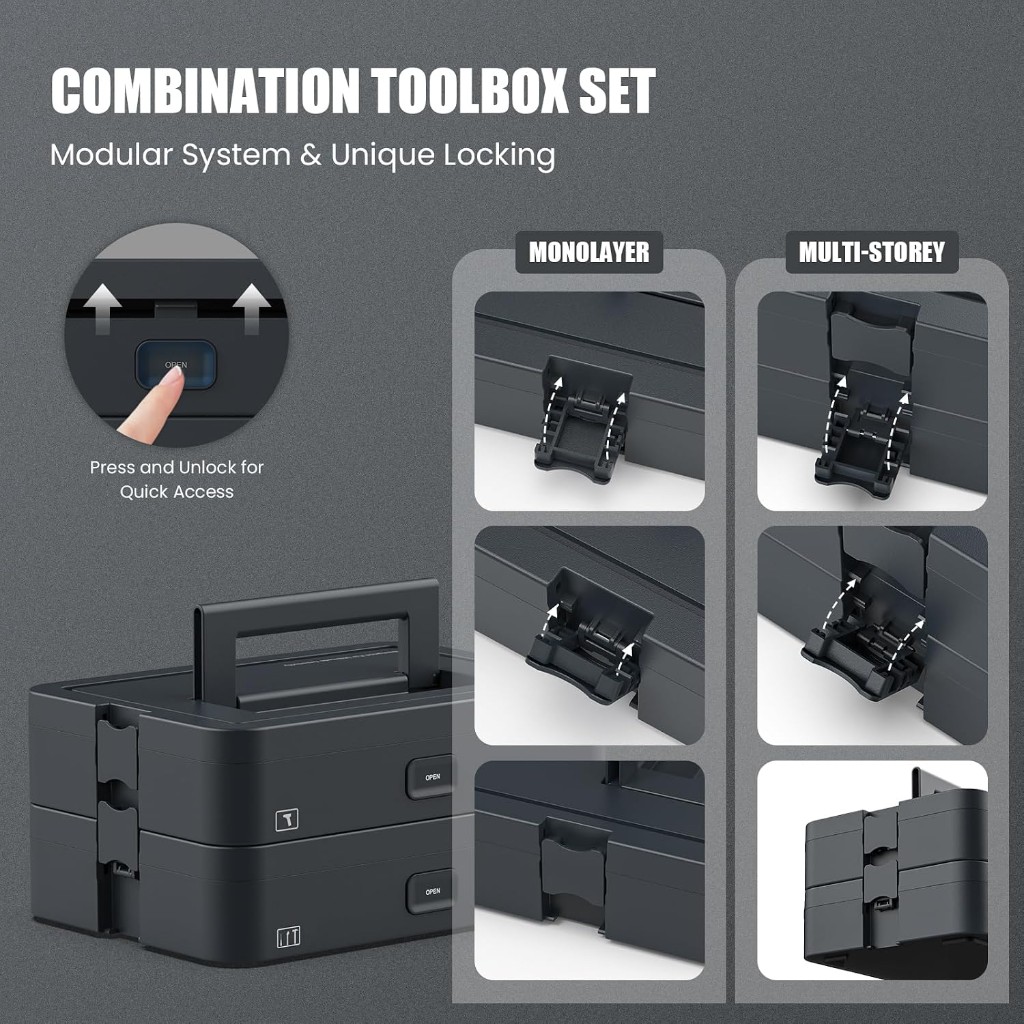

The BZD-01T-PH-A1case splits into two lockable, blow-molded ABS tiers (13.2 × 9.5 × 6.4 in combined) that can be carried together or unlocked and split apart. Blackzero's own labeled product-detail images list the following contents per tier:

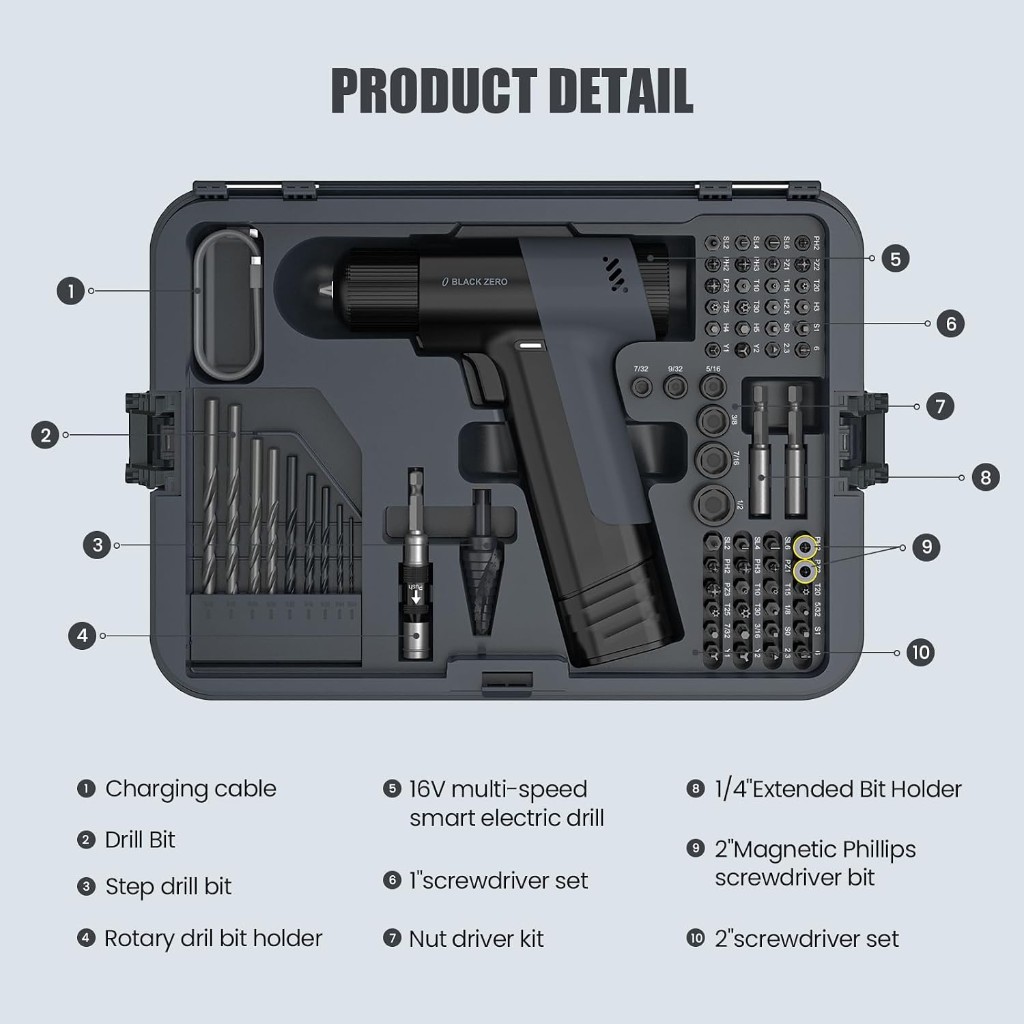

Drill tier
- 16V multi-speed smart electric drill
- USB-C charging cable
- Drill bit set
- Step drill bit
- Rotary drill bit holder
- 1" screwdriver set
- 2" screwdriver set
- Nut driver kit
- 1/4" extended bit holder
- 2" magnetic Phillips screwdriver bit

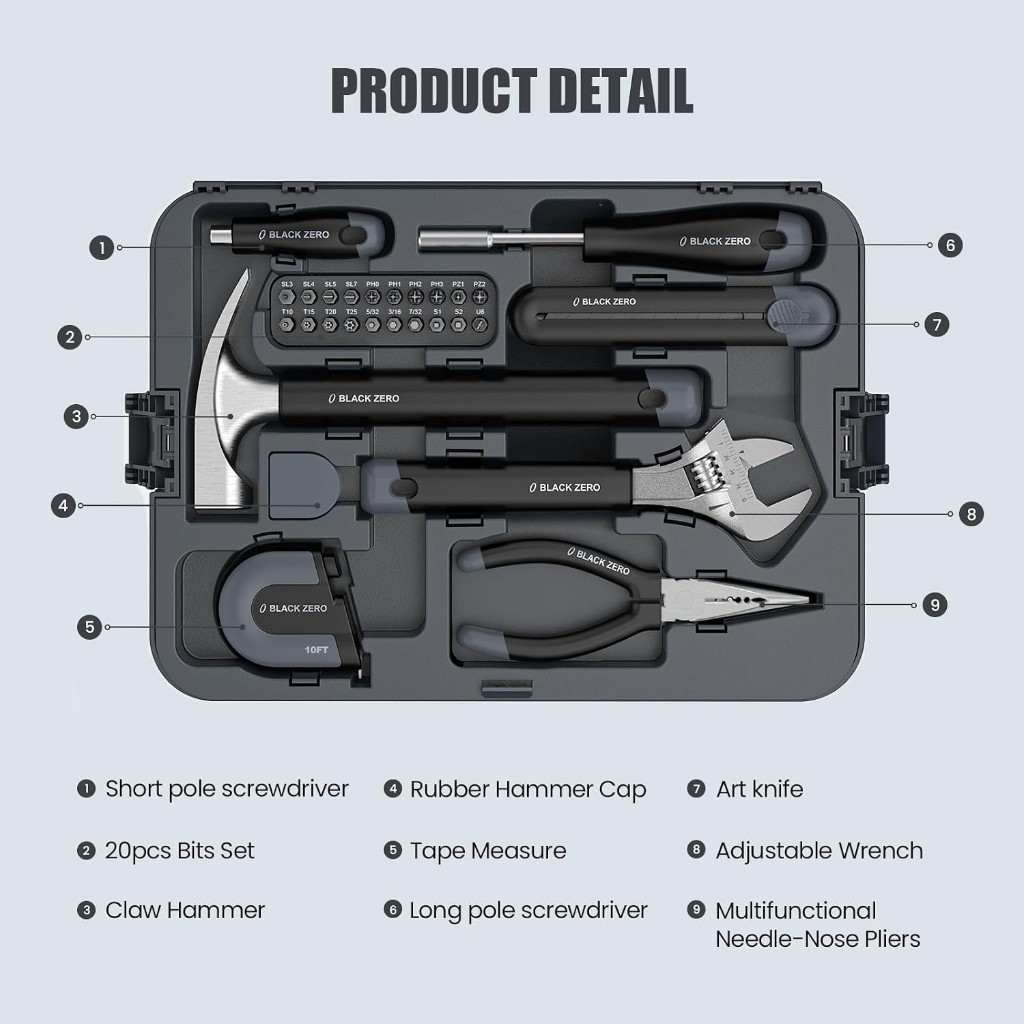

Hand-tool tier
- Short pole screwdriver
- Long pole screwdriver
- 20-piece bit set
- Claw hammer with rubber hammer-head cap
- 10ft tape measure
- Art/utility knife
- Adjustable wrench
- Multifunctional needle-nose pliers
Blackzero's labeled product image calls the hand-tool tier's hammer a claw hammer with a rubber hammer-head cap, while the listing's marketing copy separately describes it as a sheepshead hammerwith a hardness of 50–56 HRC, a magnetic nail-driver design for short or long nails, a magnetic tip that can collect and place nails for one-handed use, and a non-slip head cover to protect work surfaces and reduce noise. We could not confirm from Blackzero whether "claw hammer" and "sheepshead hammer" refer to the same physical tool or two different hammer styles bundled with different case runs — both descriptions are included here rather than picking one.
The five working modes, explained
Blackzero's own listing copy confirms the display "can show the current operating mode, dual mode and forward and backward prompts," and that a single tap of the button at the bottom of the display cycles through the 5 modes at any time — but it does not publish a numbered chart mapping each mode to an exact RPM. The breakdown below is drawn from independent teardown reviews and technical spec sheets of the same BZD-01T drill used across the PH, PS and A1 listings.
- 1
Small screws
0–400 RPM — Lowest speed band, for small fasteners where over-driving strips the head or the material.
- 2
Medium screws
0–700 RPM — A middle speed step for standard wood and drywall screws.
- 3
Large screws
0–850 RPM — The top screwing-mode speed, for longer or larger-gauge fasteners.
- 4
Drilling
0–1,000 RPM — The dedicated drilling mode, for boring holes rather than driving fasteners.
- 5
Auto / smart mode
up to 1,000 RPM — An automatic mode that ramps speed for the task at hand instead of holding a single fixed step.
How BZD-01T-PH-A1 differs from BZD-01T-PH, BZD-01T-PS and BZD-01
Blackzero sells several near-identical listings built around the same 16V brushless drill. The model-number suffix tells you which kit or packaging you're looking at, not a different drill:
| Model | ASIN | Listing color/style | What it is |
|---|---|---|---|
| BZD-01 | B0D5CKFVB4 | Bzd-01 | The base drill listing. No "T" tier suffix, sold on its own as an "Essential Mechanics Tools Kit" rather than a multi-tier stackable case. |
| BZD-01T-PHLive buy | B0D5CLZ1ZT | Black | The live buyable listing. Same 2-tier portable case as A1: one tier is the drill and bits, the other is a hand-tool set (hammer, screwdrivers, pliers, tape measure). This is the Amazon ASIN we link for price and availability. |
| BZD-01T-PS | B0D5CJRL8X | Bzd-01t-ps | Paired with a hardware/fastener tier (stainless hex-socket screws, barrel nuts, expansion screws, cold-pressed round terminals) instead of the PH hand-tool tier. Amazon lists this listing with 45W Type-C charging (50-minute fill) and a 1,800 W input rating on the charging spec line. |
| BZD-01T-PH-A1This page | B0DBQMQMMW | Black | The subject of this page (former ASIN). Same 2-tier drill + hand-tool kit as BZD-01T-PH. The A1 Amazon listing is no longer available; buy via the live BZD-01T-PH ASIN instead. |
In short: BZD-01 is the base drill-only or essential-kit listing, BZD-01T-PH is the live 2-tier drill + hand-tool kit (ASIN B0D5CLZ1ZT), BZD-01T-PS pairs the same drill with a hardware/fastener tier instead, and BZD-01T-PH-A1 is the former listing for that same drill-plus-hand-tool kit (ASIN B0DBQMQMMW, no longer available). All four share the same 16V brushless motor, 60 N·m torque rating and 5-mode touchscreen design described above. For buying, use the live BZD-01T-PH listing.
Who the BZD-01T-PH-A1 is for
- Home DIYers who want one drill that also charges a phone in a pinch, without carrying a second proprietary battery charger.
- Buyers replacing a worn brushed drill who want the lower maintenance and quieter operation of a brushless motor at a mainstream price point.
- Anyone comparing Blackzero listings who searched for BZD-01T-PH-A1 / B0DBQMQMMW and needs the intentional map to the live BZD-01T-PH buy link (ASIN B0D5CLZ1ZT).
Frequently asked questions
What is the Blackzero BZD-01T-PH-A1?
The Blackzero BZD-01T-PH-A1 is a 16V cordless brushless drill/driver sold as part of a 2-in-1 portable tool case (former Amazon ASIN B0DBQMQMMW). One case tier holds the drill, bits and charging cable; the other holds a hand-tool set. It uses a touchscreen display to switch between 5 working modes and charges over USB-C. That A1 listing is no longer available; the same kit is currently sold as BZD-01T-PH (ASIN B0D5CLZ1ZT).
What does the "A1" in BZD-01T-PH-A1 mean?
Blackzero has not published an official explanation of the A1 suffix. Amazon previously listed BZD-01T-PH-A1 (ASIN B0DBQMQMMW) separately from BZD-01T-PH (ASIN B0D5CLZ1ZT), even though both describe the same 2-tier drill-and-hand-tool kit. That is the naming pattern Amazon typically uses for a distinct packaging, photo set or bundle variant of the same base model rather than a hardware revision. The A1 ASIN is no longer buyable; use the live BZD-01T-PH listing instead.
How much does the BZD-01T-PH-A1 cost?
$259.00 was the last published price we recorded for this kit. Because the former A1 listing (ASIN B0DBQMQMMW) is gone, check the live BZD-01T-PH listing (ASIN B0D5CLZ1ZT) for today’s price and any active deals.
What voltage and torque does the BZD-01T-PH-A1 drill have?
Blackzero lists the BZD-01T drill platform at 16V nominal (16.8V max) with up to 60 N·m of peak torque, driven by a brushless motor.
What are the 5 working modes on this drill?
The intelligent display shows the current operating mode, a dual-mode indicator, and forward/backward prompts, switched with one tap. Independent reviews of the same BZD-01T drill platform describe the 5 modes as three screwing speeds (roughly 0–400, 0–700 and 0–850 RPM for small, medium and large screws), a drilling mode up to 1,000 RPM, and an automatic/smart mode. Blackzero has not published a numbered mode chart specific to the A1 listing.
How many screws can it drive per charge?
Per Blackzero's own listing copy, the 1600mAh battery can drive (unscrew) up to 850 screws on a full charge.
Does the battery double as a phone charger?
Yes. The removable 1600mAh battery charges via USB-C and can reverse-charge a phone or other USB device when detached from the drill.
Is the BZD-01T-PH-A1 a standalone drill or a full tool kit?
It is a 2-in-1 portable kit. One tier of the case holds the drill, its USB-C charging cable, drill bits, a universal head and a step drill bit. The other tier holds a hand-tool set, including a sheepshead hammer with a magnetic nail driver design and a non-slip head cover, for general home repair, appliance work, toy assembly, garden woodworking and other DIY tasks.
Where can I buy the BZD-01T-PH-A1 drill?
AISneer does not sell this drill directly. The BZD-01T-PH-A1 listing (ASIN B0DBQMQMMW) is no longer available on Amazon. Based on Blackzero’s published kit description, it matches the same 2-tier drill + hand-tool kit currently sold as BZD-01T-PH (ASIN B0D5CLZ1ZT). We link to that live listing so you can check today’s price, availability and seller.
Where to check the current price
AISneer does not sell this drill directly. Last recorded price for this kit was $259.00. Because the former BZD-01T-PH-A1 listing (ASIN B0DBQMQMMW) is gone, we link to the live BZD-01T-PH Amazon listing (ASIN B0D5CLZ1ZT) so you can confirm today's price, seller and availability before buying.
Check live BZD-01T-PH price on Amazon →How we compiled this page
We did not physically test this exact unit. Specs and kit contents were compiled from Blackzero's published listing copy and product images for the former BZD-01T-PH-A1 ASIN B0DBQMQMMW, then cross-checked against the live BZD-01T-PH listing (ASIN B0D5CLZ1ZT), BZD-01T-PS, BZD-01, and independent reviews of the same drill platform:
- Amazon listing copy and product images — former ASIN B0DBQMQMMW (BZD-01T-PH-A1, no longer available)
- Amazon live listing — ASIN B0D5CLZ1ZT (BZD-01T-PH; buy link on this page)
- Amazon listing, ASIN B0D5CJRL8X (BZD-01T-PS)
- Amazon listing, ASIN B0D5CKFVB4 (BZD-01)
- 3rd Planet Techies — Blackzero BZD-01 cordless drill review and performance test
- The Gadgeteer — BlackZero 2 Tier Portable Tool Kit review
- Geeks Under Grace — Review of the BlackZero 3-in-1 Tool Set
Where sources disagreed, or a figure (like exact weight or a numbered mode-to-RPM chart) simply was not published anywhere for this SKU, we flagged it in the relevant section above instead of presenting it as confirmed A1-specific fact.
